PC Interfaces
|
|
|
|
|
|
External PC interface
|
|
| |
|
|
|

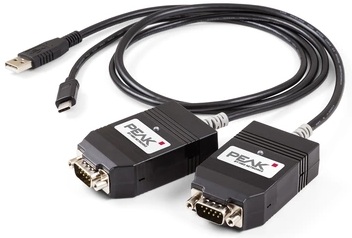

PCAN-USB FD
|
|
|
|
|
| |
The CAN FD interface PCAN-USB FD allows the
connection of CAN CC and CAN FD networks to
a computer, depending on the version via a
USB-A or USB-C port. The simple handling and
its compact plastic casing make the
interface suitable for mobile applications.
A galvanic isolation of up to 500 Volts
decouples the PC from the CAN bus.
The CAN FD standard (CAN with Flexible
Data rate) is primarily characterized by
higher bandwidth for data transfer. The
maximum of 64 data bytes per CAN FD frame
(instead of 8 so far) can be transmitted
with bit rates up to 12 Mbit/s. CAN FD is
downward-compatible to the CAN 2.0 A/B
standard, thus CAN FD nodes can be used in
existing CAN networks. However, in this case
the CAN FD extensions are not applicable.
The monitor software PCAN-View and the
programming interface PCAN-Basic for the
development of applications with CAN
connection are included in the scope of
supply and support the standard CAN FD. |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-USB
Pro FD
|
|
|
|
|
| |
The PCAN-USB Pro FD
adapter enables the connection of CAN FD and LIN networks to a computer
via USB. Two field busses can be connected at the same time, up to four
with appropriate adapter cables (2 x CAN FD, 2 x LIN). Each CAN FD
channel is separately isolated against USB and LIN with a maximum of 500
Volts. Its robust aluminum casing makes the PCAN-USB Pro FD adapter
suitable for mobile applications.
The new CAN FD standard (CAN with Flexible Data
rate) is primarily characterized by higher bandwidth for data transfer.
The maximum of 64 data bytes per CAN FD frame (instead of 8 so far) can
be transmitted with bit rates up to 12 Mbit/s. CAN FD is
downward-compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can
be used in existing CAN networks. However, in this case the CAN FD
extensions are not applicable.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-USB
|
|
|
|
|
|
The PCAN-USB adapter enables
simple connection to CAN networks. Its compact plastic casing makes it
suitable for mobile
applications.
The opto-decoupled version guarantees galvanic isolation of up to 500 Volts
between the PC and the CAN side.
The package is also supplied with the CAN monitor PCAN-View for Windows and
the programming interface PCAN-Basic.
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-USB X6
|
|
|
|
|
| |
The PCAN-USB X6 is a
CAN FD adapter for the USB port which allows the connection of up to 6
CAN FD or CAN busses. The device is therefore best suited for working
with multiple CAN networks like the use in test benches with
hardware-in-the-loop (HIL) simulations for motor vehicles or in the
product line testing of CAN-based products.
The PCAN-USB X6 is installed in an aluminum profile casing and is
shipped in versions with D-Sub connectors or M12 circular connectors.
Especially the M12 version is suitable for use in harsh environments. In
addition, a galvanic isolation of up to 300 Volts between the PC and the
CAN side is guaranteed for the decoupled versions.
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-XL Starter Bundle
|
|
|
|
|
|
The PCAN-XL Starter Bundle by PEAK-System is a comprehensive package designed to facilitate the adoption and development of the new CAN XL standard. It includes:
-
- PCAN-USB XL Interface: A USB-to-CAN adapter enabling seamless communication between a computer and CAN XL, CAN FD, and CAN CC networks.
- PCAN-Explorer 7 (Early Access Edition): Professional CAN analysis software with support for CAN XL.
- PCAN-Basic Programming Interface: A programming interface for developing custom applications with CAN connectivity, supporting CAN XL.
This bundle provides all essential components for setting up and analyzing CAN XL networks, making it ideal for users looking to explore and implement the new standard.
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PLIN-USB
|
|
|
|
|
| |
The PLIN-USB
enables the connection of a Windows computer to a LIN network via USB.
The adapter supports the LIN protocol according to the standard ISO
17987 and complies with all LIN specifications up to version 2.2. The
interface can be operated as a master or a slave.
The monitor software PLIN-View Pro and the PLIN programming interface
for the development of applications with LIN connection are included in
the scope of supply. |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
Internal PC Interface
|
|
|
|
|
|
PCAN
PCI Express
|
|
|
|
|
|
The PCAN-PCI Express
card enables the connection of a PC with PCI Express slots to CAN
networks. There is galvanic isolation of up to 500 Volts between the
computer and CAN sides. There are versions with one, two and four
channels.
The package is also supplied with the
CAN monitor PCAN-View for Windows and the programming interface
PCAN-Basic.
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN PCI
Express FD
|
|
|
|
|
|
The plug-in card
PCAN-PCI Express FD allows the connection of a PC with PCI Express
slots
to CAN FD and CAN networks. There is galvanic isolation of up to 500
Volts between the computer and CAN sides. The card is available as a
single, dual, or four-channel version.
The new CAN FD standard (CAN with Flexible Data rate) is primarily
characterized
by higher bandwidth for data transfer. The maximum of 64 data bytes
per
CAN FD frame (instead of 8 so far) can be transmitted with bit rates
up
to 12 Mbit/s. CAN FD is downward-compatible to the CAN 2.0 A/B
standard,
thus CAN FD nodes can be used in existing CAN networks. However, in
this
case the CAN FD extensions are not applicable.
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-miniPCIe
|
|
|
|
|
|
The PCAN-miniPCIe card
enables the connection of embedded PCs and laptops with PCI Express
Mini
slots to CAN networks. There is galvanic isolation of up to 300 Volts
between the computer and CAN sides. The card is available as a single
or
dual-channel version.
The package is also supplied with the CAN monitor PCAN-View for
Windows and the programming interface PCAN-Basic.
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-miniPCIe
FD
|
|
|
|
|
|
The PCAN-miniPCIe FD
is a CAN interface for the PCI Express Mini slot. With its
space-saving
format, the plug-in card is a suitable solution for connecting
embedded
systems to up to four CAN FD and CAN networks. There is galvanic
isolation of up to 300 Volts between the computer and CAN sides. The
card is available as a single, dual, or four-channel version.
The new CAN FD standard (CAN with Flexible Data
rate) is primarily characterized by higher bandwidth for data
transfer.
The maximum of 64 data bytes per CAN FD frame (instead of 8 so far)
can
be transmitted with bit rates up to 12 Mbit/s. CAN FD is
downward-compatible to the CAN 2.0 A/B standard, thus CAN FD nodes can
be used in existing CAN networks. However, in this case the CAN FD
extensions are not applicable.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-M.2
|
|
|
|
|
| |
| The PCAN-M.2 allows
the connection of CAN and CAN FD networks via the M.2 interface (PCIe)
of modern computer boards. With its small format, the plug-in card is
ideal for embedded PCs, single-board computers (SBC), and compact
embedded applications. There is a galvanic isolation between the
computer and the CAN side up to 300 Volts. The card is available as
single and dual-channel version. |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
