PC CAN I/O Modules
|
|
|
|
|
|

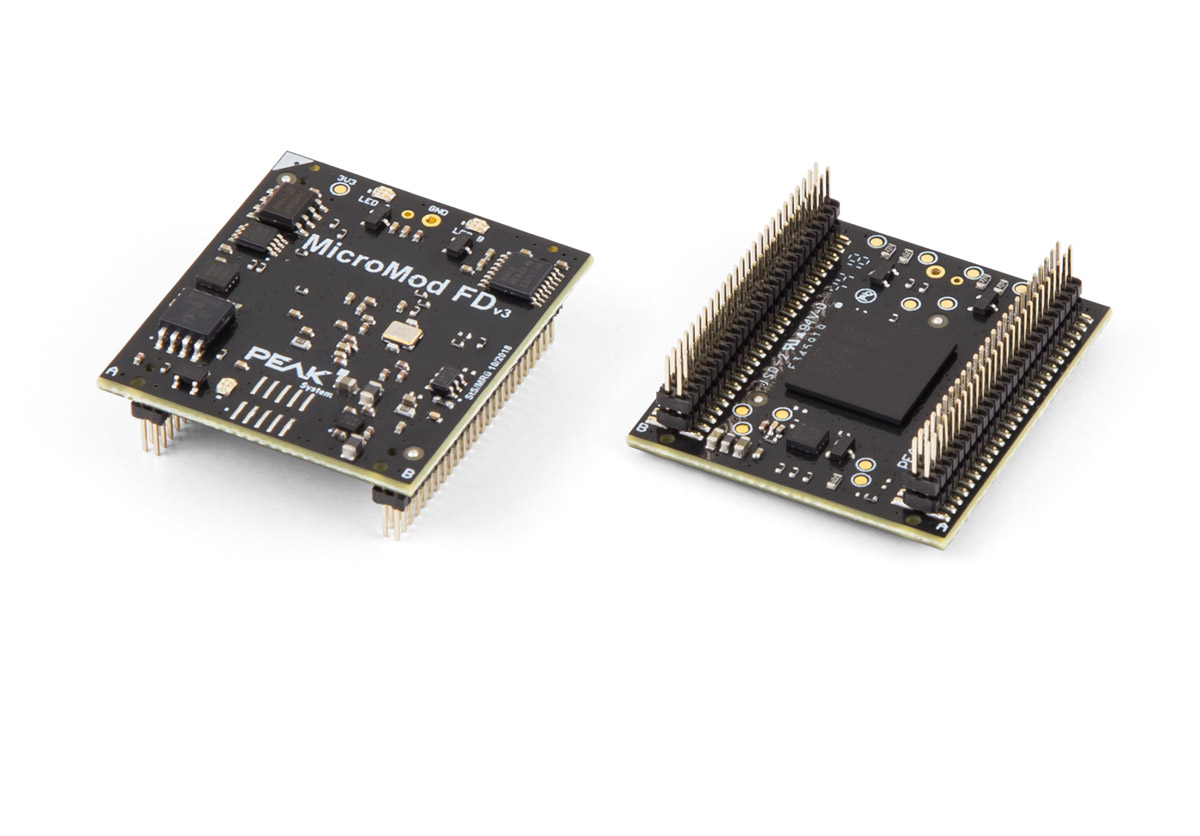

PCAN-MicroMod FD
|
|
|
|
|
|
|
The PCAN-MicroMod FD is a
compact plug-in module that
integrates CAN and CAN FD
connectivity with various
physical I/O capabilities. It
features an NXP LPC54618
microcontroller and supports CAN
FD data rates up to 10 Mbit/s.
The module offers 8 analog
inputs (0–3 V, 12-bit
resolution, 1 kHz sampling), 8
digital inputs, 8 digital
outputs, and 2 frequency
outputs. Configuration is
performed via Windows software,
allowing users to map I/O to CAN
IDs and utilize function blocks
for data processing. Once
configured, the module operates
as an independent CAN node,
enabling multiple modules to
function concurrently on the
same CAN bus.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|

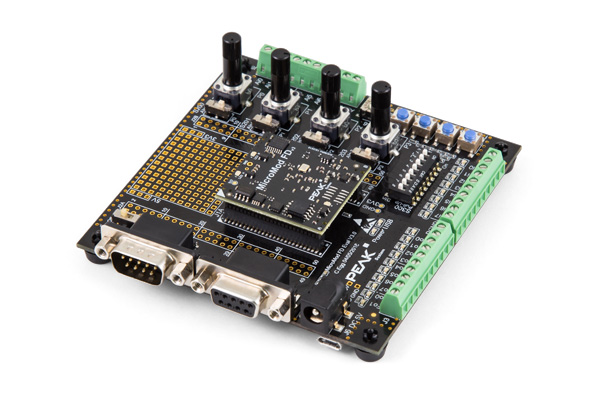

PCAN-MicroMod FD Evaluation Board
|
|
|
|
|
|
|
The PCAN-MicroMod FD
Evaluation Board is a
development platform for the
PCAN-MicroMod FD module,
enabling the creation and
testing of custom circuits with
CAN and CAN FD connectivity. It
features access points like
screw terminals, switches, and
potentiometers to interact with
the module's I/O resources.
Configuration is achieved via
the included Windows software,
transferring settings through
the CAN bus. An optional
Evaluation Kit adds a CAN
interface and cable for
comprehensive testing. |
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|

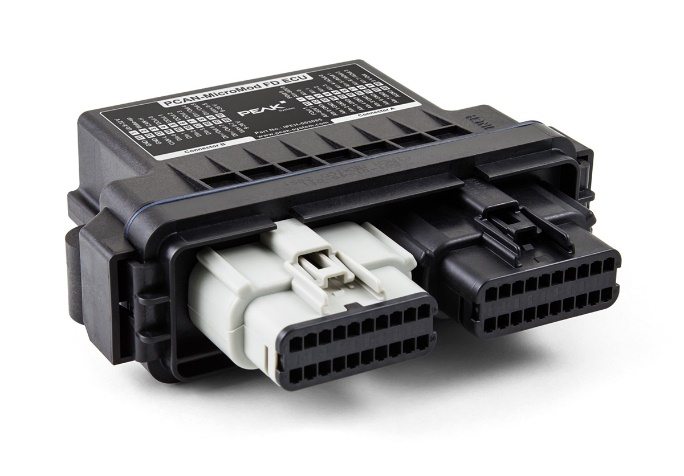

PCAN-MicroMod FD ECU
|
|
|
|
|
|
|
The PCAN-MicroMod FD ECU
is a robust, configurable
control unit designed for
integrating custom accessories
into automotive applications. It
features a CAN FD connection and
a combination of analog and
digital I/Os, making it suitable
for use in commercial and
heavy-duty vehicles under harsh
conditions. The device is
configured using a free Windows�
software, allowing users to map
I/Os to CAN IDs and utilize
function blocks for data
processing. The configuration is
transferred via the CAN bus to
the PCAN-MicroMod FD, which then
operates as an autonomous CAN
node. |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|

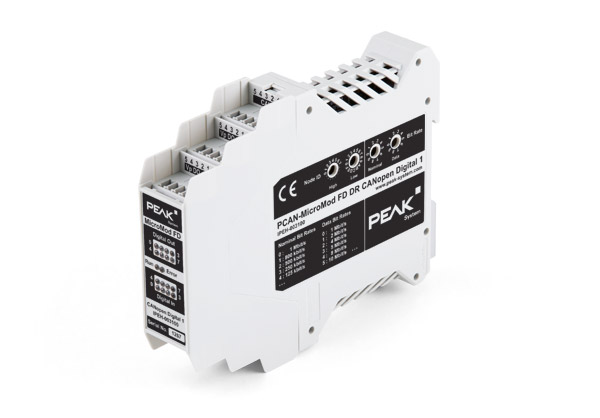

PCAN-MicroMod FD DR CANopen Digital 1 |
|
|
|
|
|
|
The PCAN-MicroMod FD DR
CANopen Digital 1 is a
robust I/O module designed for
industrial applications
utilizing CANopen® and CANopen
FD® networks. It features 8
digital inputs and 8 digital
outputs, all housed in a DIN
rail-mounted enclosure suitable
for harsh environments. |
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|

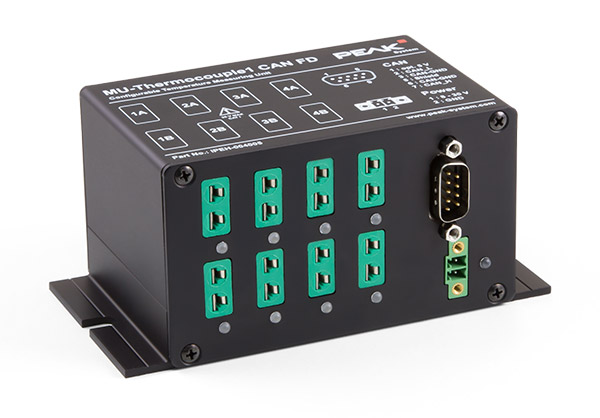

MU-Thermocouple1 CAN FD
|
|
|
|
|
|
|
With the MU-Thermocouple1 CAN
FD, measurement data of
thermocouples is captured,
preprocessed, and transmitted
via CAN FD. The temperature is
measured via 8 connectors, which
are specified for the
temperature measuring ranges J,
K or T, depending on the product
version. Temperatures can be
captured in Celsius, Fahrenheit,
or Kelvin and processed with an
individual scale and offset. The
measurement data is then
transmitted via CAN FD or
classic CAN.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|

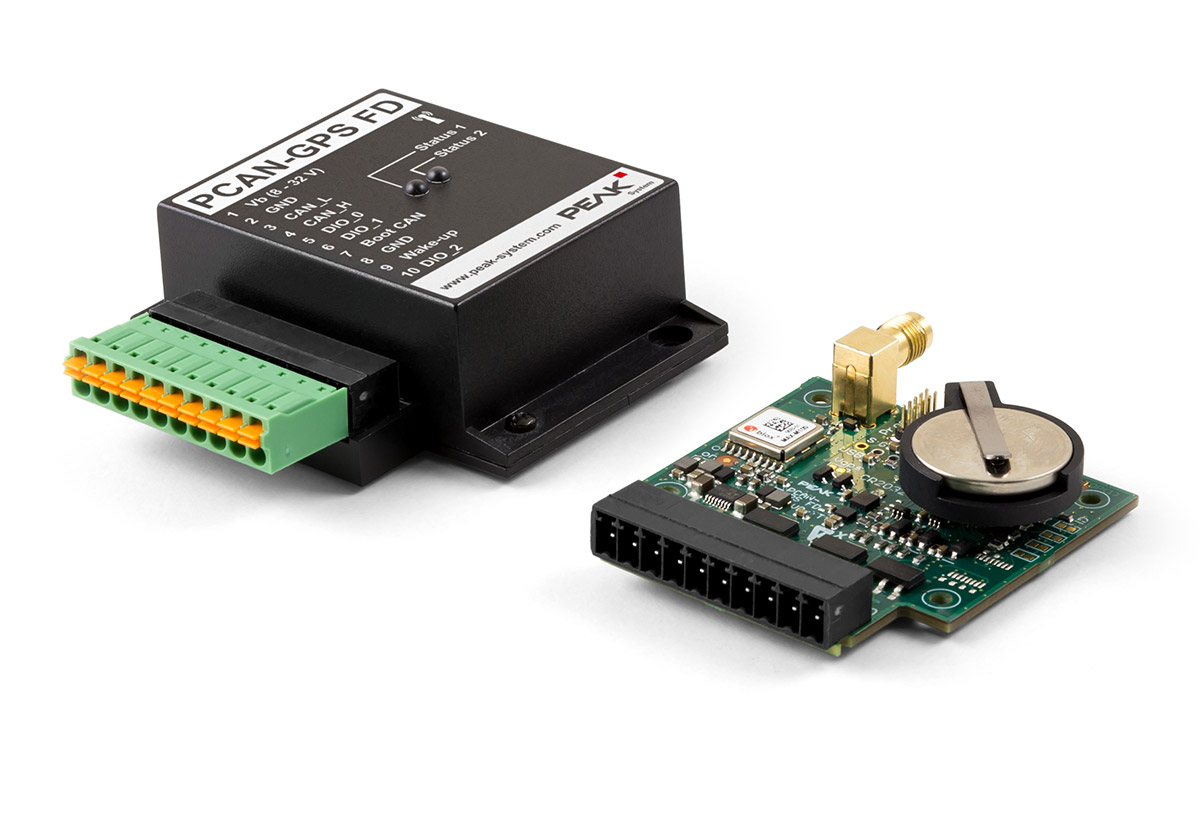

PCAN-GPS FD |
|
|
|
|
|
|
The PCAN-GPS FD is a
programmable sensor module for
position and orientation
determination with CAN FD
connection. It has a satellite
receiver, a magnetic field
sensor, an accelerometer, and a
gyroscope. Incoming sensor data
is processed by the NXP
microcontroller LPC54618 and
then transmitted via CAN or CAN
FD. |
|
 |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
