PC CAN Diagnostics & Education
|
|
|
|
|
|

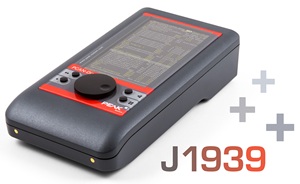

PCAN-Diag FD J1939 Add-in |
|
|
|
|
|
SAE J1939 describes
communication in utility
vehicles via CAN. Using PGs
(Parameter Groups) and SPs
(Suspect Parameters), the
standard defines messages and
data for the transmission of
diagnostic and control
information.
The J1939 Add-in for the
PCAN-Diag FD extends the
functional range of the
diagnostic device by the support
for the SAE J1939 standard. The
CAN data traffic is interpreted
according to the included J1939
database and is represented in a
way that is understandable for
the user. In addition, the
add-in includes functions such
as the decoding of multi-packet
messages, address claiming, and
the handling of diagnostic
information.
The J1939 Add-in is activated
with a device-bound license file
which can also be purchased
afterwards for a PCAN-Diag FD.
Updates for the included J1939
database are included for a
period of 2 years. An extension
for further 2 years can be
purchased separately
(IPES-004069-Ext). |
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-MiniDiag FD
|
|
|
|
|
|
Compact Diagnostic
Device for CAN and CAN FD Buses
The PCAN-MiniDiag FD is a compact, low-cost handheld device for basic
diagnosis and checking of CAN and CAN FD buses.Service technicians and
developers can easily access networks of vehicles, machines, or
industrial equipment whose configuration is unknown. the device has
measuring functions for the termination, bus load, and voltage levels
at
the CAN connector.
Complies with CAN specifications 2.0 A/B and FD and supports CAN FD
support for ISO and Non-ISO standards
The PCAN MininDiag FD comes with D-Sub, 9-pin (in accordance with CiA�
303-1), OLED display with 128 x 128 pixel resolution, power supply via
exchangeable batteries (3 x Micro AAA with 1.2 V or 1.5 V), operation
via membrane keypad with four keys and plastic casing with increased
Ingress Protection IP42.
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
PCAN-Diag FD
|
|
|
|
|
|
The
PCAN-Diag FD is a handheld device for diagnosis of the
communication on a CAN bus. Possibilities for diagnosis are available
on
the protocol layer by handling CAN 2.0 and CAN FD messages as well as
on
the physical layer by using the oscilloscope function and further
measuring functions for voltage and resistance.
The oscilloscope function is used for a qualitative assessment of the
signal course on the CAN bus. Two independent measuring channels
sample
both lines CAN-High and CAN- Low with up to 100 MHz. Based on the
signal
course, the PCAN-Diag FD decodes CAN frames and shows their elements
in
the scope graphics.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
|
|
|
PCAN-MiniDisplay
|
|
|
|
|
|
The PCAN-MiniDisplay
is used as a human-machine interface for the
visualization of CAN data. For the connection to the CAN bus, it has
two
High-speed CAN connectors. The graphic representation of incoming CAN
data is configured before using the unit and then is performed on a
TFT
display.
The PCAN-MiniDisplay can alternatively be used for data logging. The
data traffic is recorded to a memory card and can be replayed or
analyzed on a PC later on.
|
|
|
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
